Vacuum Furnace
TVC Vacuum Carburizing System
Carburizing (Carbonitriding) · Batch · Oil Quench
- Series
- TVC-2, TVC-2.5, TVC3, TVC3.5
- Work Zone
- 650H x 650W x 1220L (TVC-2)
- Max Load
- 650 kg (TVC-2)
- Max Temp
- 1,100°C
TAKASAGO
Tempering, Annealing · Batch · Gas Cool
| Specification | TVT-1 (Small) | TVT-2 (Medium) | TVT-3.5 (Large) |
|---|---|---|---|
| Internal Dimensions | 360H×460W×760L | 650H×650W×1220L | 820H×820W×1400L |
| Ultimate Vacuum | 2Pa | 2Pa | 2Pa |
| Max Load Capacity | 300 kg | 650 kg | 1000 kg |
| Max Operating Temperature | 700 ℃ | 700 ℃ | 700 ℃ |
| Temperature Accuracy | ±5 ℃ | ±5 ℃ | ±5 ℃ |
| Power Capacity | Approx. 90 kVA | Approx. 135 kVA | Approx. 220 kVA |

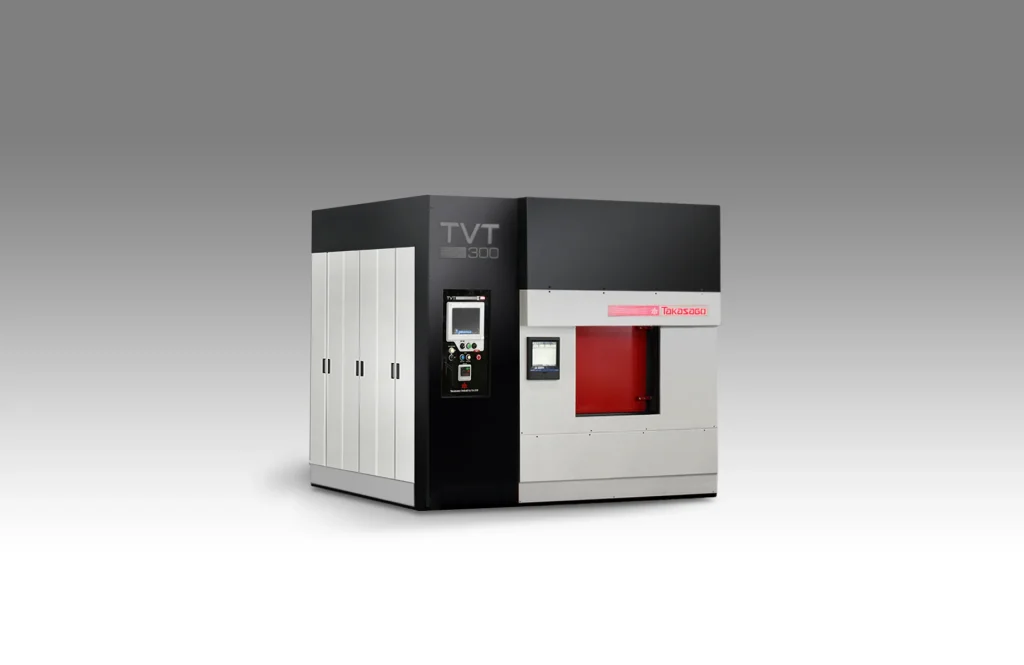

* Photo shows an example.
Carburizing (Carbonitriding) · Batch · Oil Quench
Carburizing (Carbonitriding) · Continuous · Oil Quench
Magnetic Annealing · Continuous · Gas Cool
Before full-scale implementation, start with testing. We support you in solving your challenges.
We propose optimal solutions for your heat treatment challenges.
