Vacuum Furnace
TVC Vacuum Carburizing System
Carburizing (Carbonitriding) · Batch · Oil Quench
- Series
- TVC-2, TVC-2.5, TVC3, TVC3.5
- Work Zone
- 650H x 650W x 1220L (TVC-2)
- Max Load
- 650 kg (TVC-2)
- Max Temp
- 1,100°C
TAKASAGO
Magnetic Annealing · Continuous · Gas Cool
| Specification | TVCC-G (1) | TVCC-G (2) | TVCC-G (3) | TVCC-G (4) |
|---|---|---|---|---|
| Configuration | (TVF reference) | 2 Heating Chambers + Gas Cooling Chamber | 3 Heating Chambers + Gas Cooling Chamber | 4 Heating Chambers + Gas Cooling Chamber |
| Cycle Time | 480 min (8h) | 160 min (2.7h) | 120 min (2h) | 96 min (1.6h) |
| Production Capacity | 50kg/h | 148.1kg/h | 200kg/h | 250kg/h |
| Processing Cost | 25.5 JPY/kg | 22.5 JPY/kg | 19.8 JPY/kg | 19 JPY/kg |

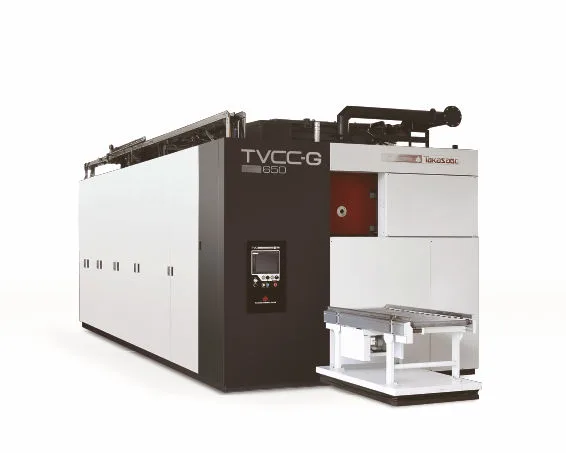

* Photo shows an example.
Carburizing (Carbonitriding) · Batch · Oil Quench
Carburizing (Carbonitriding) · Continuous · Oil Quench
Vacuum Hardening · Batch · Oil Quench
Before full-scale implementation, start with testing. We support you in solving your challenges.
We propose optimal solutions for your heat treatment challenges.
