Pusher Kiln

Industrial Furnace

Continuous processing furnace that pushes products through the kiln

Temperature Range Max 1,350°C

Kiln Type Continuous

Heat Source Electricity / Gas

Atmosphere Air / Special Atmosphere

Contact Us

In-house Test Furnace Specifications

Internal Dimensions (Effective)	W1,000×H350mm
Firing Temperature	max. 1,350℃
Furnace Atmosphere	Nitrogen
Heat Source	Electric (SiC heating elements, metal heating elements)
Heating Capacity	Heater 580kW

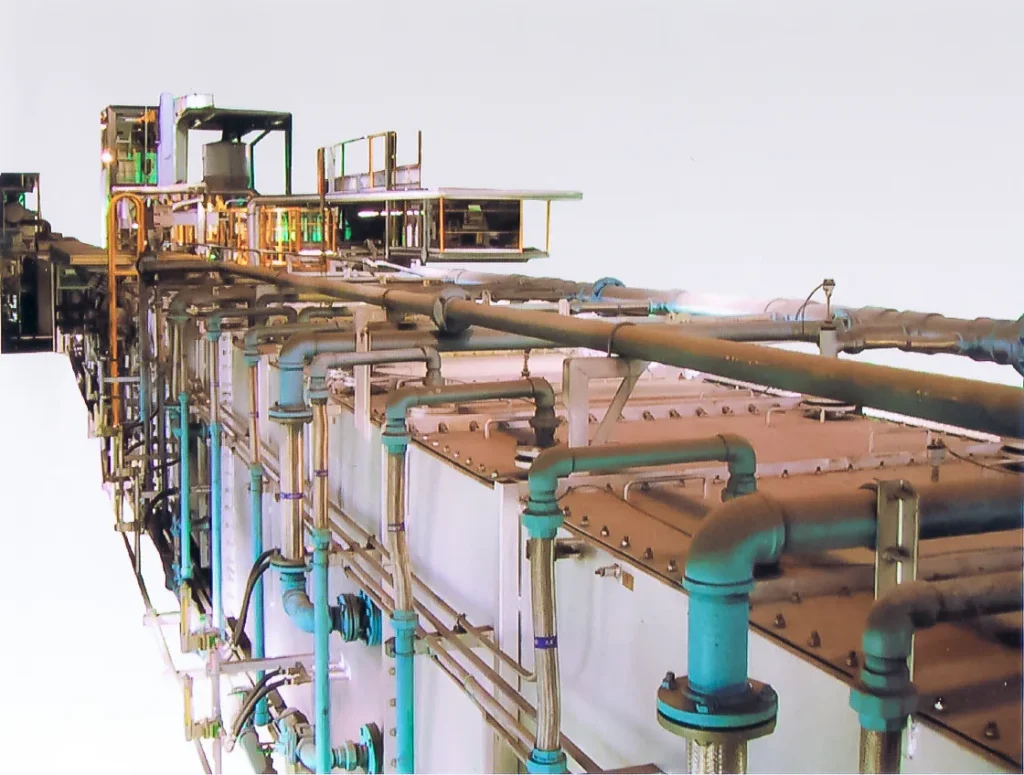

* Photo shows an example.

A furnace that continuously heat-treats products by pushing them through with a pusher mechanism.
Products are placed on refractory setters depending on firing temperature.
Products on setters move through heating, soaking, and cooling zones for firing.
Capable of firing in air and special atmospheres (nitrogen, etc.).
