Shuttle Kiln

Industrial Furnace

Batch-type firing furnace with a cart that moves back and forth

Temperature Range Max 1,800°C

Kiln Type Batch

Heat Source Electricity / Gas

Atmosphere Air / Special Atmosphere

Contact Us

In-house Test Furnace Specifications

Internal Dimensions (Effective)	W1,300×L1,850×H950mm
Firing Temperature	max. 1,350℃
Furnace Atmosphere	Air
Heat Source	LPG gas
Heating Capacity	480kW

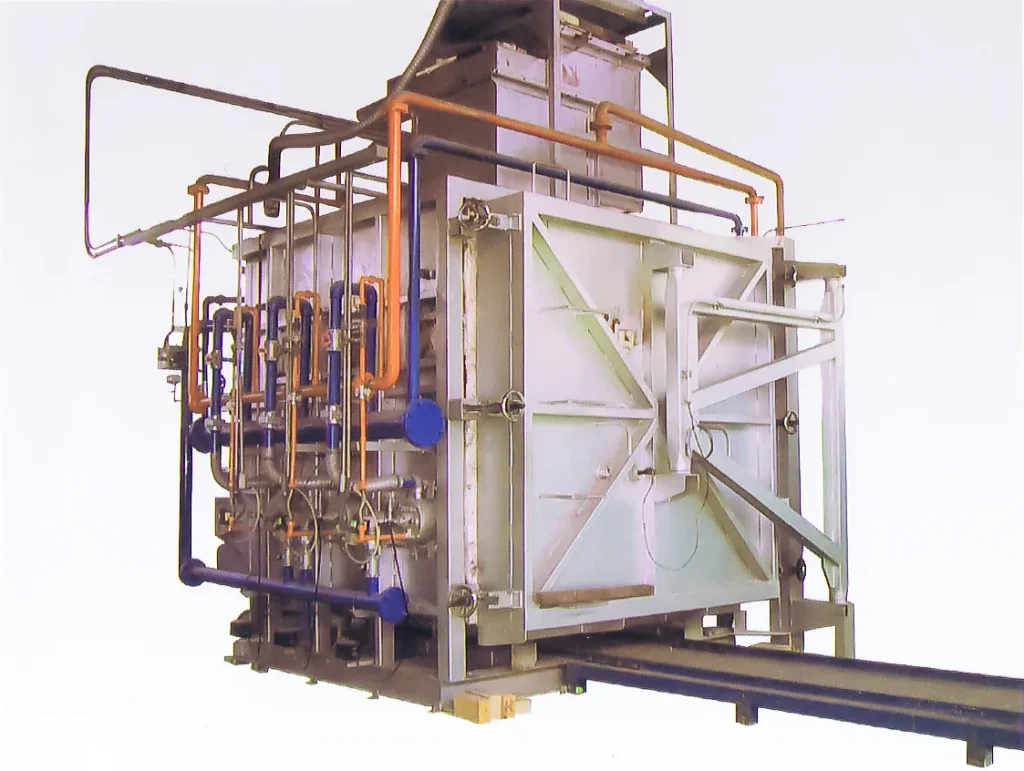

* Photo shows an example.

A batch furnace that moves the cart back and forth.
The furnace body is fixed; the cart is pulled out for product loading and unloading.
Short firing times enable quick processing, providing excellent productivity despite being a batch furnace.
Low thermal mass allows rapid heating.
Temperature distribution can be controlled with high precision.
Processes in air and special atmospheres (nitrogen, etc.).
