Roller Hearth Kiln

Industrial Furnace

High-speed continuous heat treatment furnace that conveys products on rollers

Temperature Range Max 1,350°C

Kiln Type Continuous

Heat Source Electricity / Gas

Atmosphere Air / Special Atmosphere

Contact Us

In-house Test Furnace Specifications

Furnace Length	12.6m
Internal Dimensions (Effective)	W350×H150mm
Firing Temperature	max. 1,350℃
Furnace Atmosphere	Nitrogen, oxygen, hydrogen, air
Heat Source	Resistance heating elements (SiC, metal)
Heating Capacity	220kW

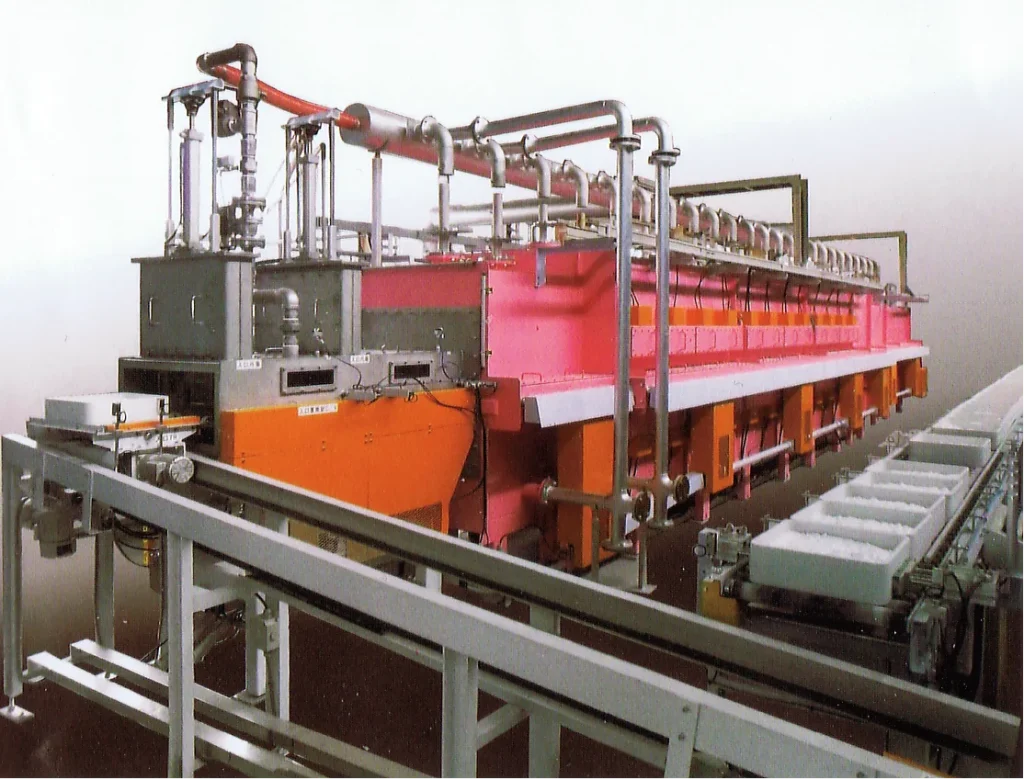

* Photo shows an example.

A rapid firing continuous furnace with rollers on the hearth. Depending on firing temperature, rollers are made of stainless steel, ceramic (high alumina), or SiC, driven by inverter-controlled drive units. Our proprietary drive mechanism improves product alignment.
Products travel on rotating rollers through preheating, firing, and cooling zones. Depending on product shape and dimensions, products may be placed on refractory setters.
Heaters installed above and below the products ensure uniform heating.
Compatible with air, nitrogen, hydrogen, and various other atmosphere gases.
Furnace internal width can be manufactured up to 2.0m.

Secondary battery cathode/anode materials, various ceramic compacts, various powder raw materials, electronic components, etc.
