Vacuum Furnace
TVC Vacuum Carburizing System
Carburizing (Carbonitriding) · Batch · Oil Quench
- Series
- TVC-2, TVC-2.5, TVC3, TVC3.5
- Work Zone
- 650H x 650W x 1220L (TVC-2)
- Max Load
- 650 kg (TVC-2)
- Max Temp
- 1,100°C
TAKASAGO
Magnetic Annealing, Precipitation Hardening, Gas Quenching · Batch · Gas Cool
| Specification | TVF-2 (Medium) | TVF-3 (Large) |
|---|---|---|
| Internal Dimensions | 650H×610W×920L | 760H×920W×1400L |
| Ultimate Vacuum | 1Pa | 1Pa or less |
| Max Load Capacity | 650 kg | 1000 kg |
| Max Operating Temperature | 1320 ℃ | 1320 ℃ |
| Temperature Accuracy | ±5 ℃ | ±5 ℃ |
| Power Capacity | Approx. 180 kVA | Approx. 340 kVA |

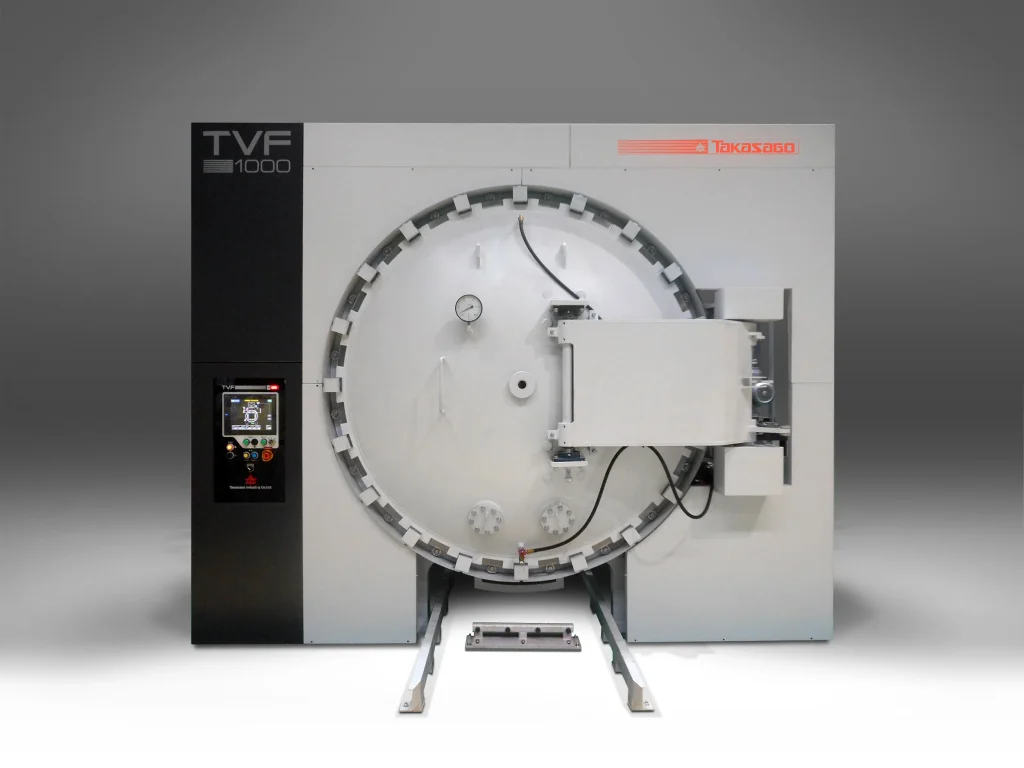

* Photo shows an example.
* For high vacuum specifications, please contact us separately.
Carburizing (Carbonitriding) · Batch · Oil Quench
Carburizing (Carbonitriding) · Continuous · Oil Quench
Magnetic Annealing · Continuous · Gas Cool
Before full-scale implementation, start with testing. We support you in solving your challenges.
We propose optimal solutions for your heat treatment challenges.
